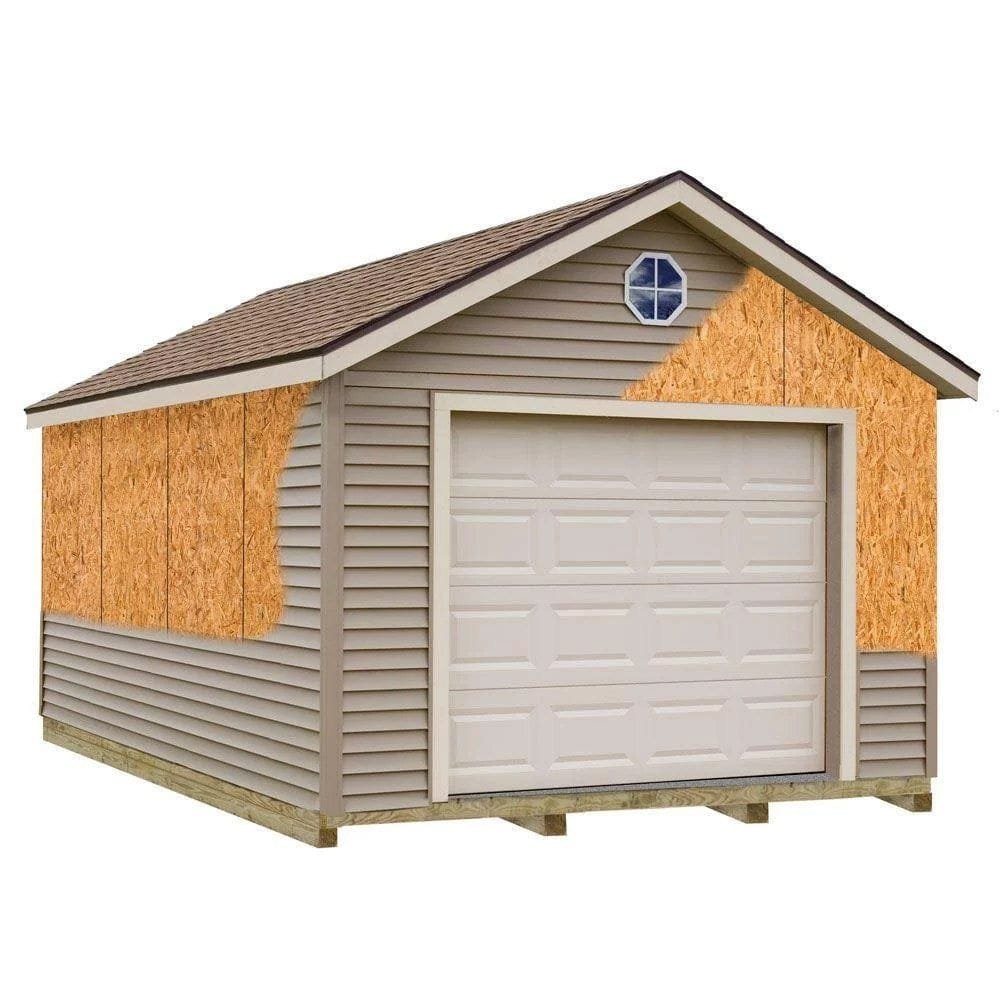

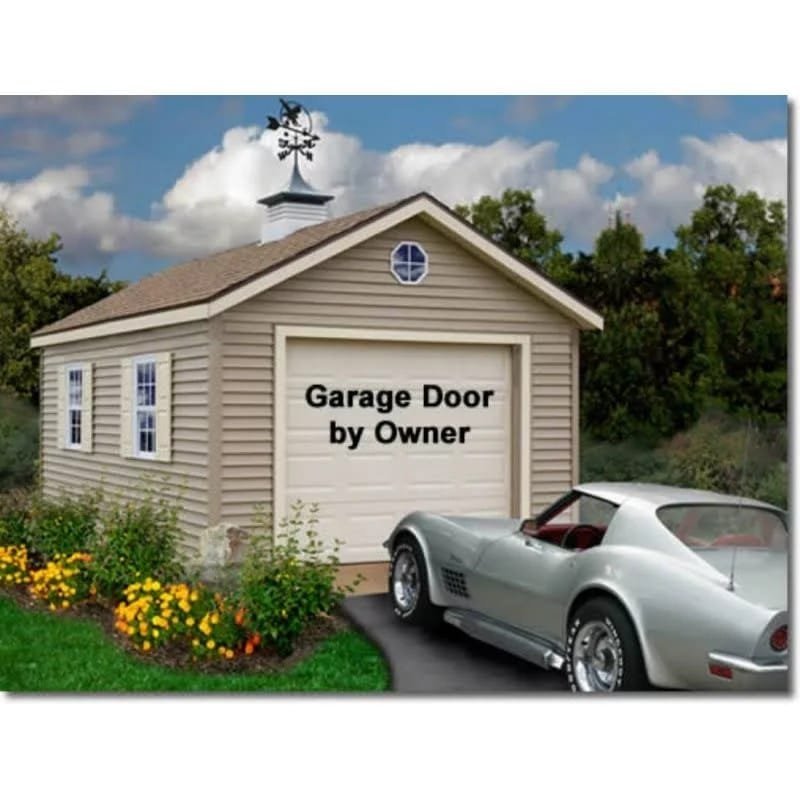

The Greenbriar prep for vinyl garage kit is the perfect single car garage. The Greenbriar is designed so you can match your home by allowing you to choose the style of vinyl siding which you purchase separately Prep for vinyl means that the Greenbriar exterior walls are covered with an OSB ( Oriented Strand Board) for the purpose of applying exterior siding of your choice. You may apply wood lap siding, stucco, vinyl siding or any exterior grade siding designed to be applied to an underlayment. Premium 24 in. O.C. 2 x 4 wall construction. Framing for an 8 ft. x 7 ft. garage door accommodates your choice of doors (not included). Check with your local permit authority before placing your order. Building is shipped directly to you via curbside delivery. Building is shown with optional windows. Floor is not included. Shingles, vinyl siding and garage door purchased separately by homeowner.
- Assembled dimensions: 144 in. W x 192 in. D x 127 in. H
- Sturdy-built engineered truss system provides for 90 MPH wind loads and 40 lb. snow load
- Designed for application of vinyl siding of your choice, you purchase locally
- 8 ft. – 1 in. high wall height, 11 ft. – 4 in. peak height
- Attractive front gable overhang protects from the elements
- Wall construction 24 in. O.C.
- All required nails, hardware, glue are provided along with detailed easy to follow step-by-step instructions
- 15-year limited warranty
- Garage door not included, requires 9 in. low headroom track both purchased locally by homeowner
- Assembly required, some cutting required during assembly
- Delivery is curbside at end of driveway
-
Additional Resources
From the Manufacturer
-
Dimensions
Approximate Depth (ft.) 16 Approximate Height (ft.) 11 Approximate Width (ft.) 12 Assembled Depth (in.) 192 in Assembled Height (in.) 136 in Assembled Width (in.) 144 in Coverage Area (sq. ft.) 192 sq ft Garage Door Height (in.) 84 Garage Door Width (in.) 96 Details
Color Family Clear Features No Additional Features Floor Options Without Floor Frame Material Wood Included Assembly Instructions, No Additional Items Included Installation Available No Manufacturers Recommended Assembly Time (hours) 72 Manufacturers Recommended Tools needed for Assembly Safety Glasses, Hammer, Screwdriver, Level, Ladders, Tape Measure, Square, Drill, Circular Saw Maximum Roof Load 40 Maximum Wind Resistance 90 Number of Garage Doors 0 Number of People Recommended by Manufacturer to Assemble 3 Parking Layout Single Car Product Weight (lb.) 1980 lb Returnable 90-Day Roof Color Family Unfinished Wood Roof Material Not Included Roof Shape Peak Side Door No Siding Color Family Gray Trim Color Family Unfinished Wood Window(s) No Warranty / Certifications
Manufacturer Warranty 15 Year Warranty
